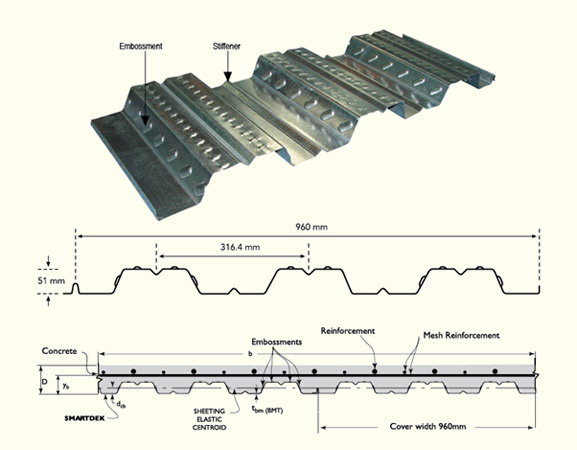

LYSAGHT SMARTDEK® 51 Structural Decking System is an innovative high strength zinc-coated steel decking system designed for use in the construction of composite floor slabs. It is specifically developed for the Indian Construction Industry and is one of the most economical structural steel decking in the country. SMARTDEK® 51 system complements the LYSAGHT® profiles, which is a premium range of roofing and wall cladding solutions.
Smart Construction :-
SMARTDEK® 51 system provides a safe working platform that is fast and easy to set up and therefore minimises multi-storey construction time. Faster construction time allows optimisation on construction schedule delivering faster value to the developers.
Smart Application :-
Besides its application in composite floors in multi-storey buildings and commercial establishments, it is extensively used for Mezzanine applications. Corrosion
resistant coating makes it the best solution for typical applications like parking sheds, where SMARTDEK® 51 system provides better appearance to exposed ceilings.
Material Specifications :-
SMARTDEK® 51 panel is manufactured from hot dipped zinc coated high strength steel with 550 MPa yield strength and coating mass of Z275 (min 275g/m2 total
of zinc coating on both sides). The available thickness ranges from 0.70 mm to 1.2 mm BMT (Base Metal Thickness). The steel conforms to AS1397 and BS EN 10147:2000.
Benefits :-
• Excellent spanning capacities for greater strength and less deflection 1.2 mm BMT SMARTDEK® 51 can span more than 3 metres unpropped
• Embossments provide mechanical interlock ensuring adequate composite action
• SMARTDEK® 51 acts as bottom tensile reinforment and eliminates the need of bottom rebars
• Precision engineered; brings greater economy and design freedom
• Ease of installation combined with safety
• Saves on concrete and reinforcement cost
• Greater corrosion resistance provides long life
• SMARTDEK® 51 composite slabs can be designed for up to 4 hours of fire rating
